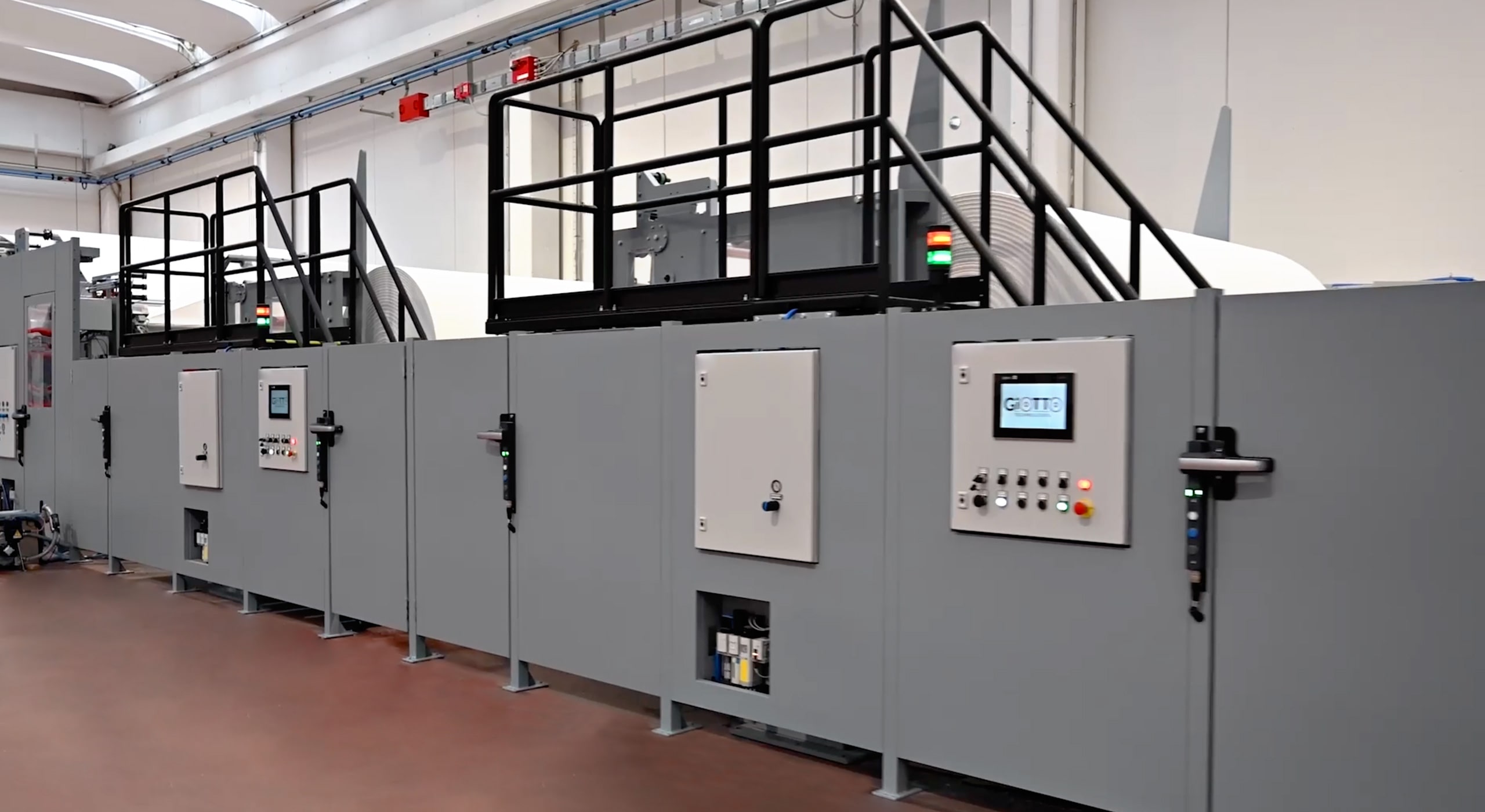

Tissue Converting Solutions

Complete converting line to produce high quality tissue roll products.

Designed to save energy, maximize operational efficiency and enhance the quality of final products.

Certified line for “TRANSIZIONE 5.0”

LATEST GENERATION TORQUE MOTORS

Energy reduction up to 15%

DECO 2 - Powered by Tripler

The new concept of embossed tissue roll

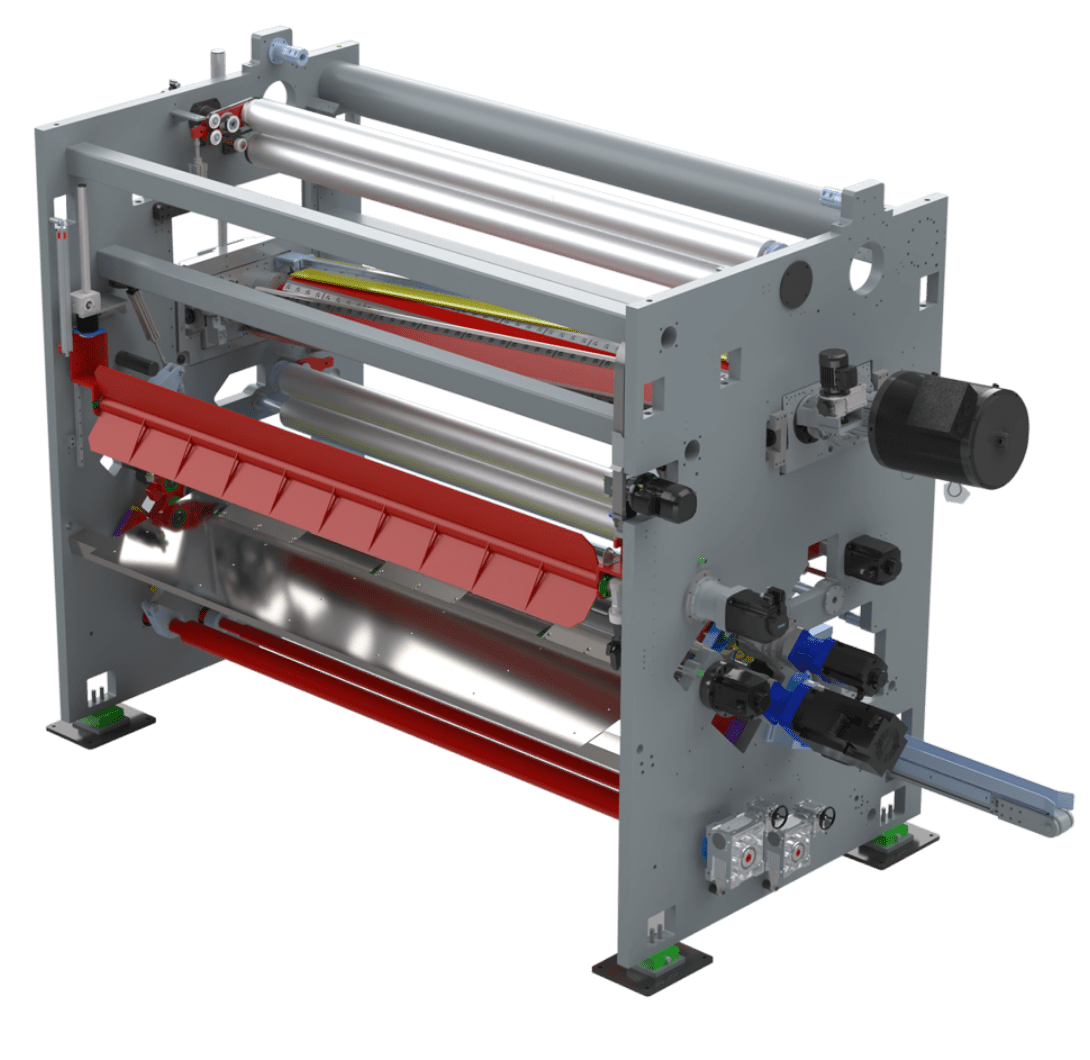

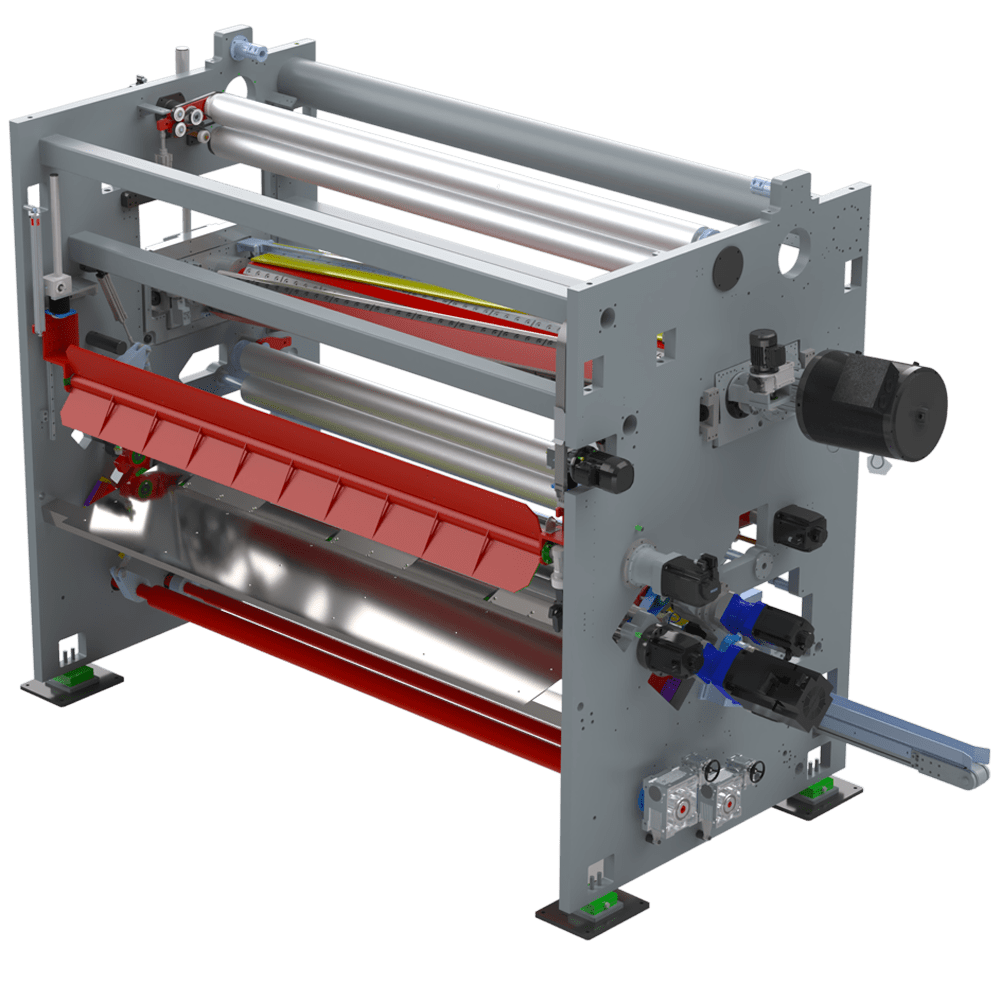

SMART REWINDER

MORE

Working speed up to 500 m/min or 600 m/min

Roll diameter range 90–200 mm

Width from 2750 up to 3650 mm

PATENTED

Pick-up Glue Application System
  • Pick-up glue applied during core at transfer
  • During introduction rotation the core goes in touch with a glueing device
  • The glued core is introduced into the cradles area
Reduced amount of glue applied
Quantity of glue always constant independently from speed
No need to remove cores after stop
Double perforation system
Perforation roll 6 blades
Perforation length range:
  • 90–180 mm with 6 blades
  • 180-360 mm with 3 blades
  • 270-540 mm with 2 blades
Reduced amount of glue applied
Quantity of glue always constant independently from speed
No need to remove cores after stop

Blades Gap Adjustable by Touch Panel
LESS

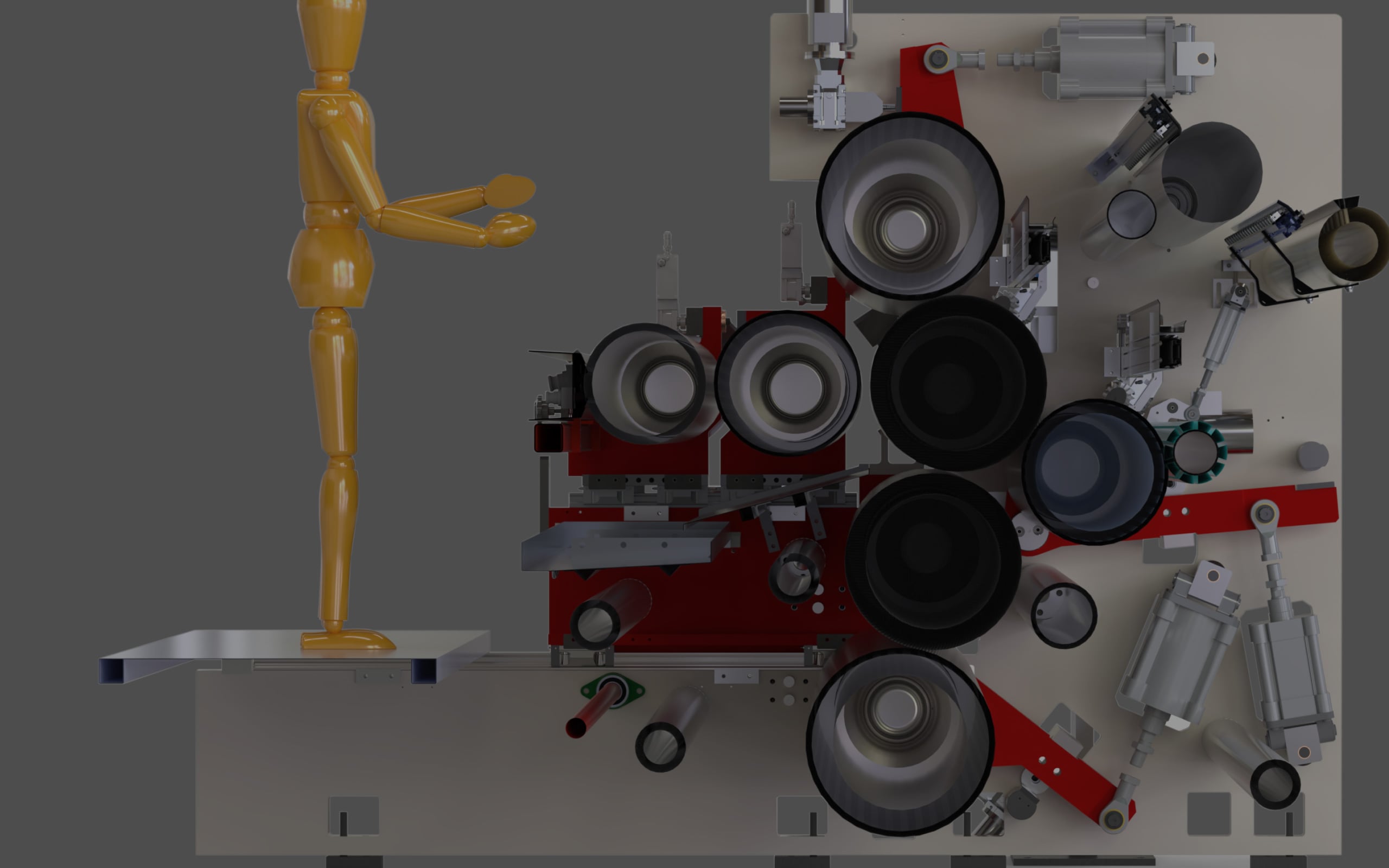

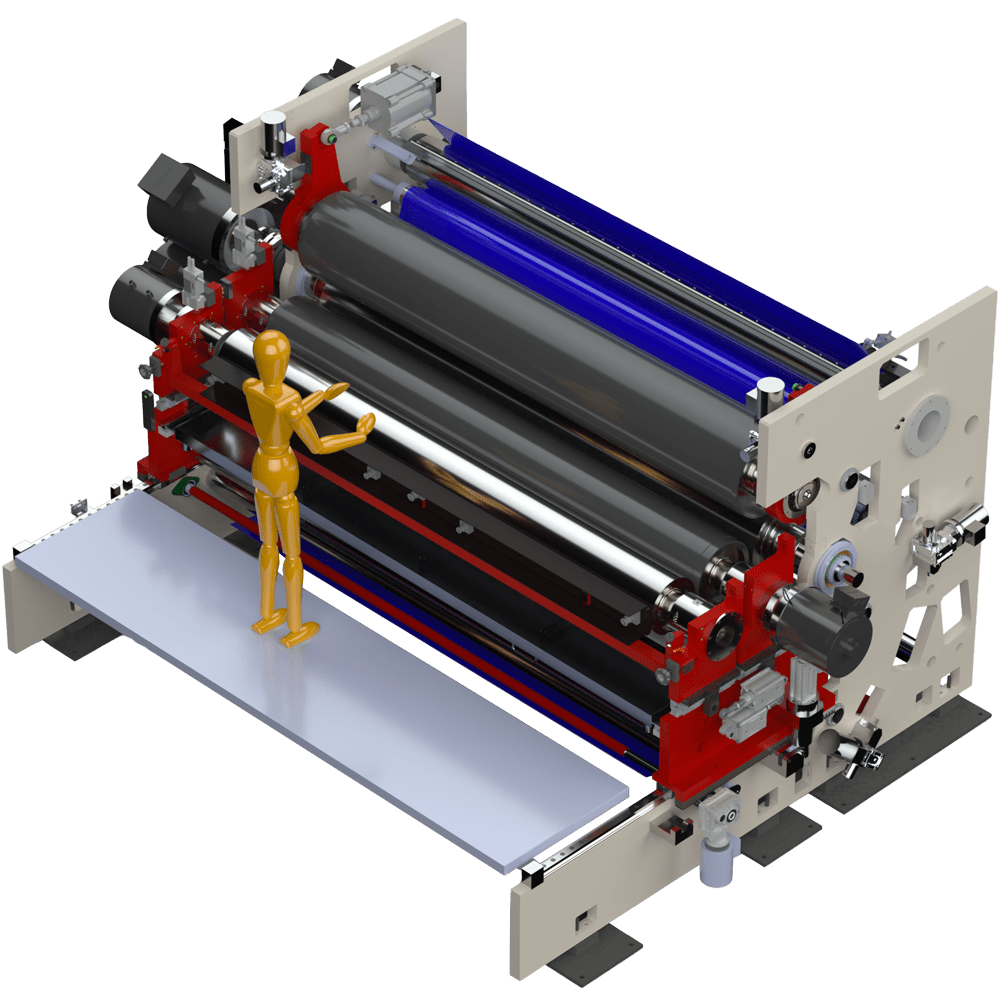

SMART EMBOSSER

MORE

Working speed up to 500 m/min or 600 m/min

Steel roll diameter 350 mm or 420 mm

Automatic change of steel rolls with stand-by rolls accumulator

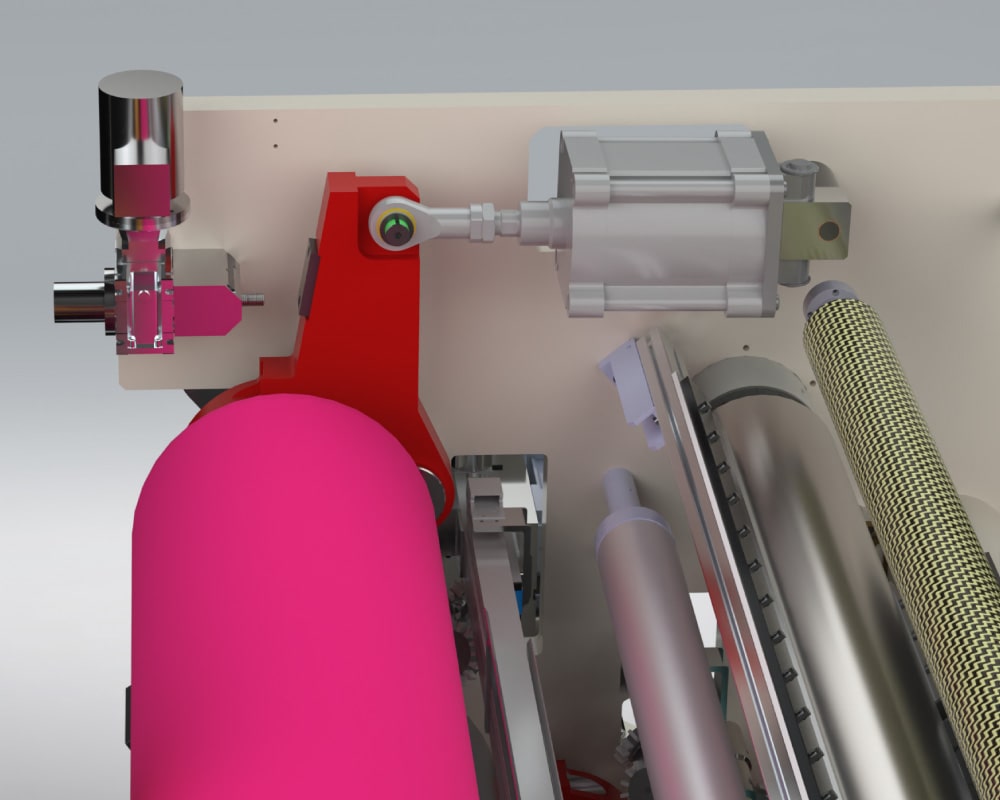

Nip Control

  • Rubber roll opening/closing by means of pneumatic cylinders
  • Nip adjustment by HMI
  • Nip position can be saved in product recipe
  • Adjustments can be done while the machine is running

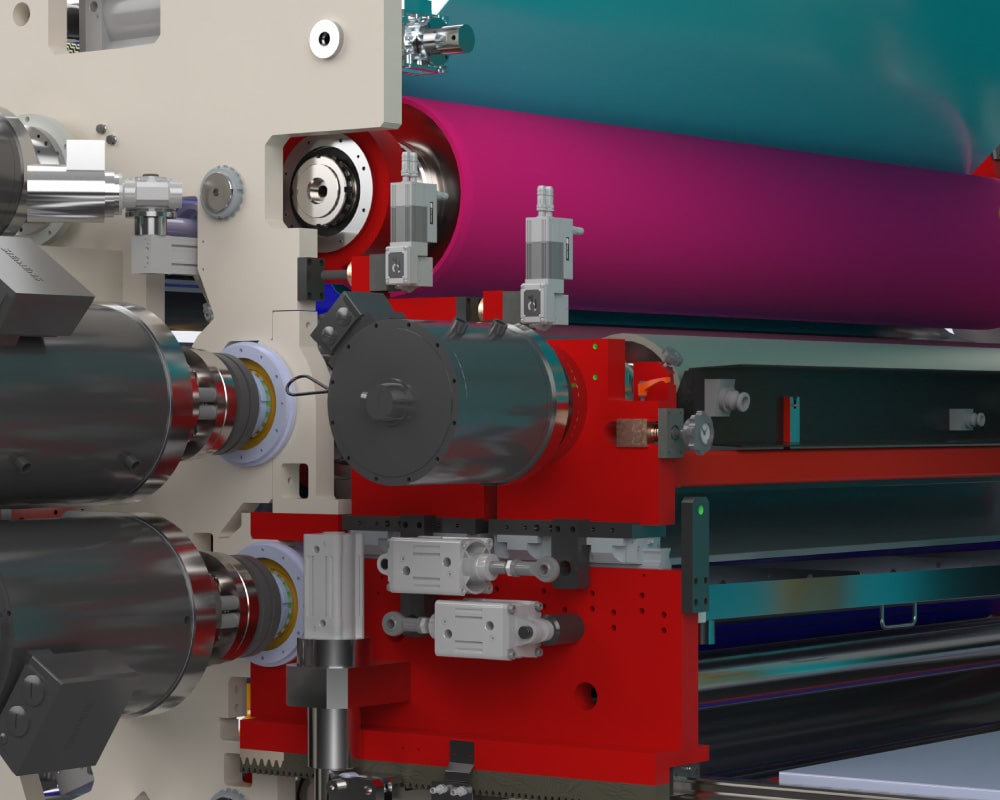

Lamination Unit

  • Clichè and Anilox roll opening/closing by means of pneumatic cylinders
  • Glue rolls gap adjustable by touch panel
  • Adjustments can be done while the machine is running
Higher safety - operators remain behind guarding
LESS

LATEST GENERATION
TORQUE MOTORS

Consistent power, energy optimization and cost reduction

Energy reduction up to 15%

Connection coupling torque motor – roll with automatic phasing
Automatic roll engage for quick roll change
More precise control and higher efficiency

FOUR LANE
LOG SAW

Independent motorization
for each lane

Speed up to
240 cuts/min

Universal clamps range
from 90 mm to 240 mm
No need to replace parts for different diameters
Independent motorization for each lane
Idle or motorized sharpening stones
Shuttle trim eliminator

HMI
CONTROL PANEL

Remote access to individual production phase

User Friendly

All controls are easy to be managed

INNOVATION

Giotto Technologies R&D department stands out to create sustainable innovation throughout the converting process with patented solutions.

LOWER ENERGY CONSUMPTION
LOWER ENERGY
CONSUMPTION
LESS NOISE
LESS
NOISE
LESS COMPRESSED AIR
LESS
COMPRESSED AIR
NO HYDRAULICS
NO
HYDRAULICS
